Hi,
Here are a selection of drawings,
I hope they prove useful.
Regards,
Les.T

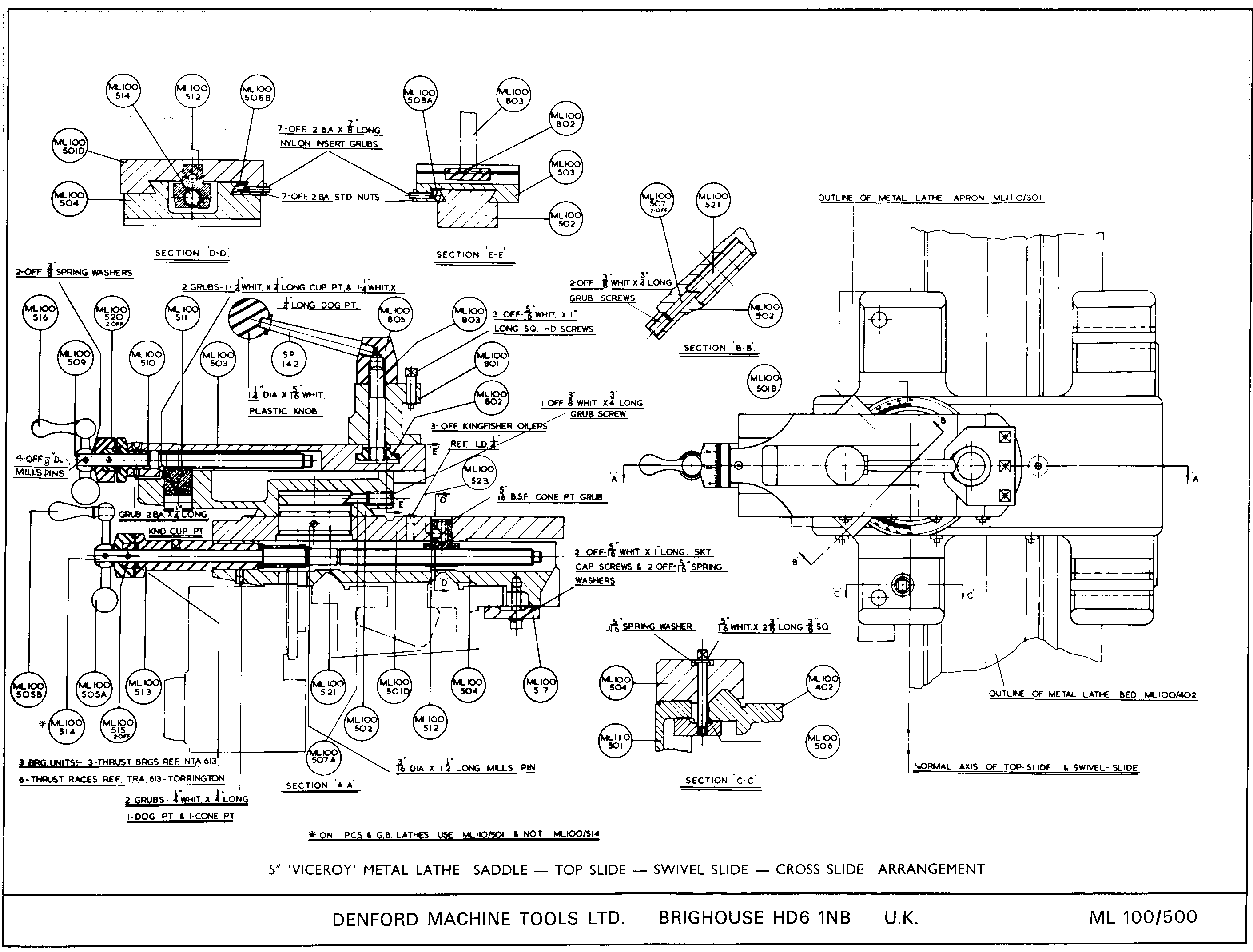

ML 100/500

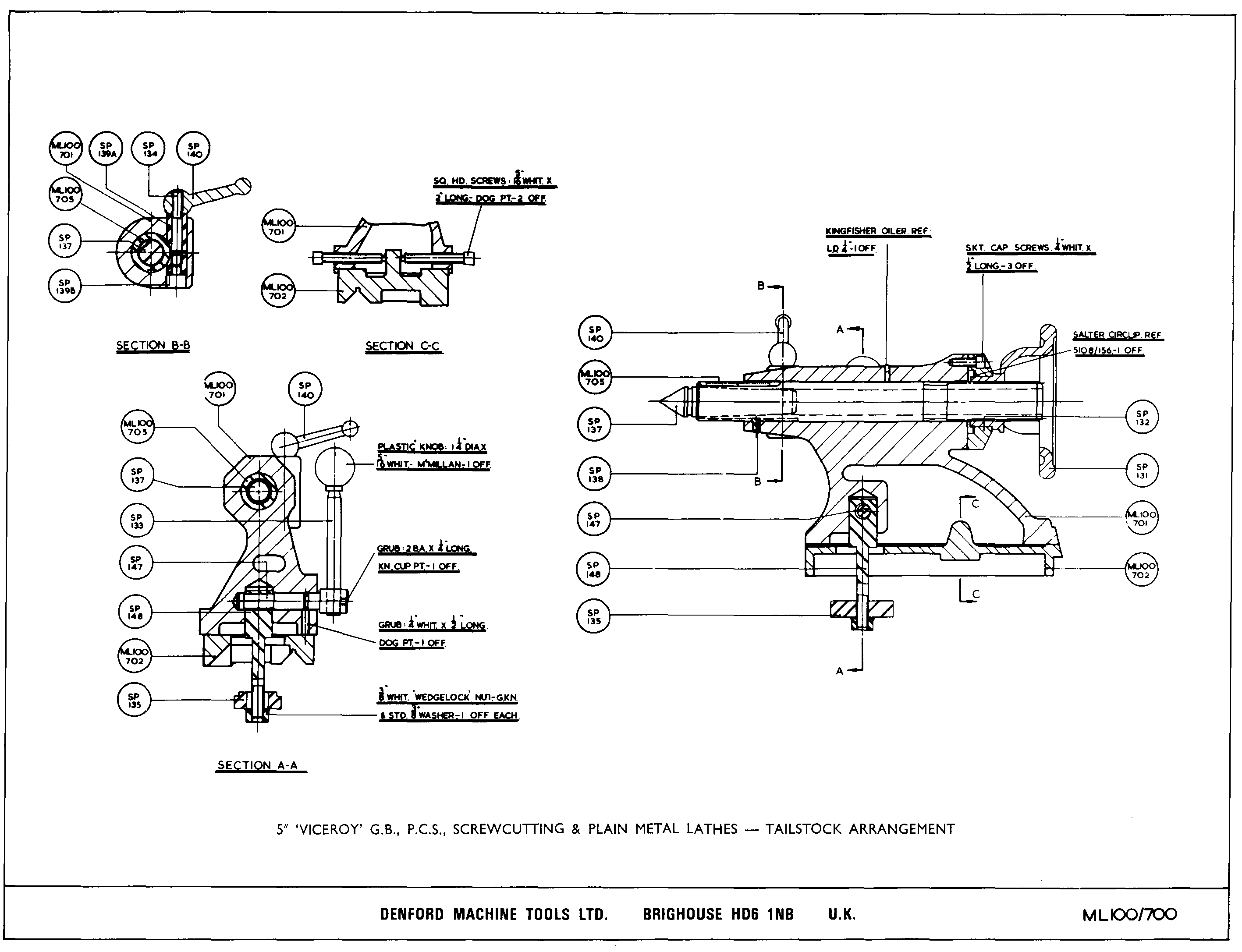

ML 100/700

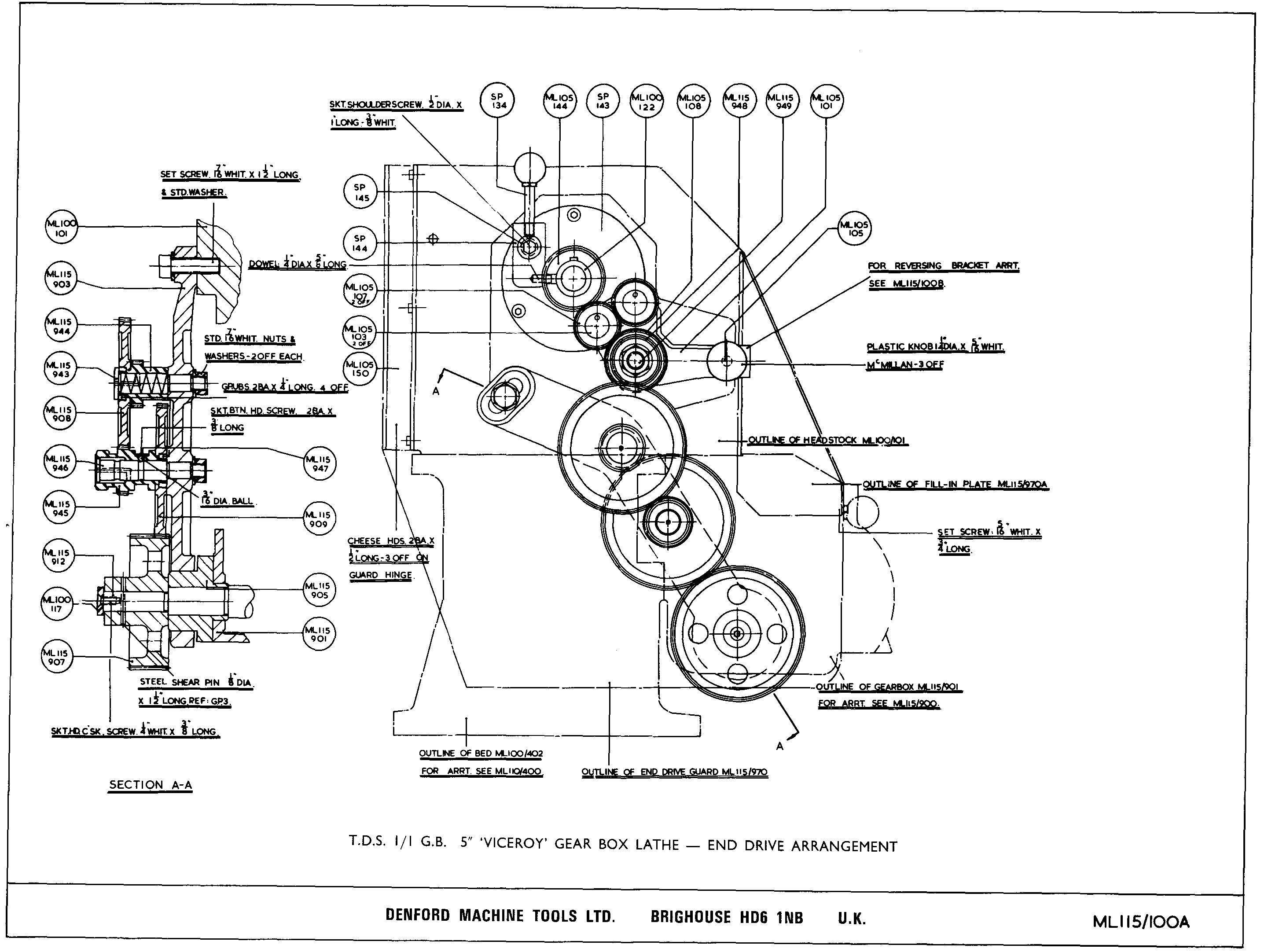

ML 115/100A

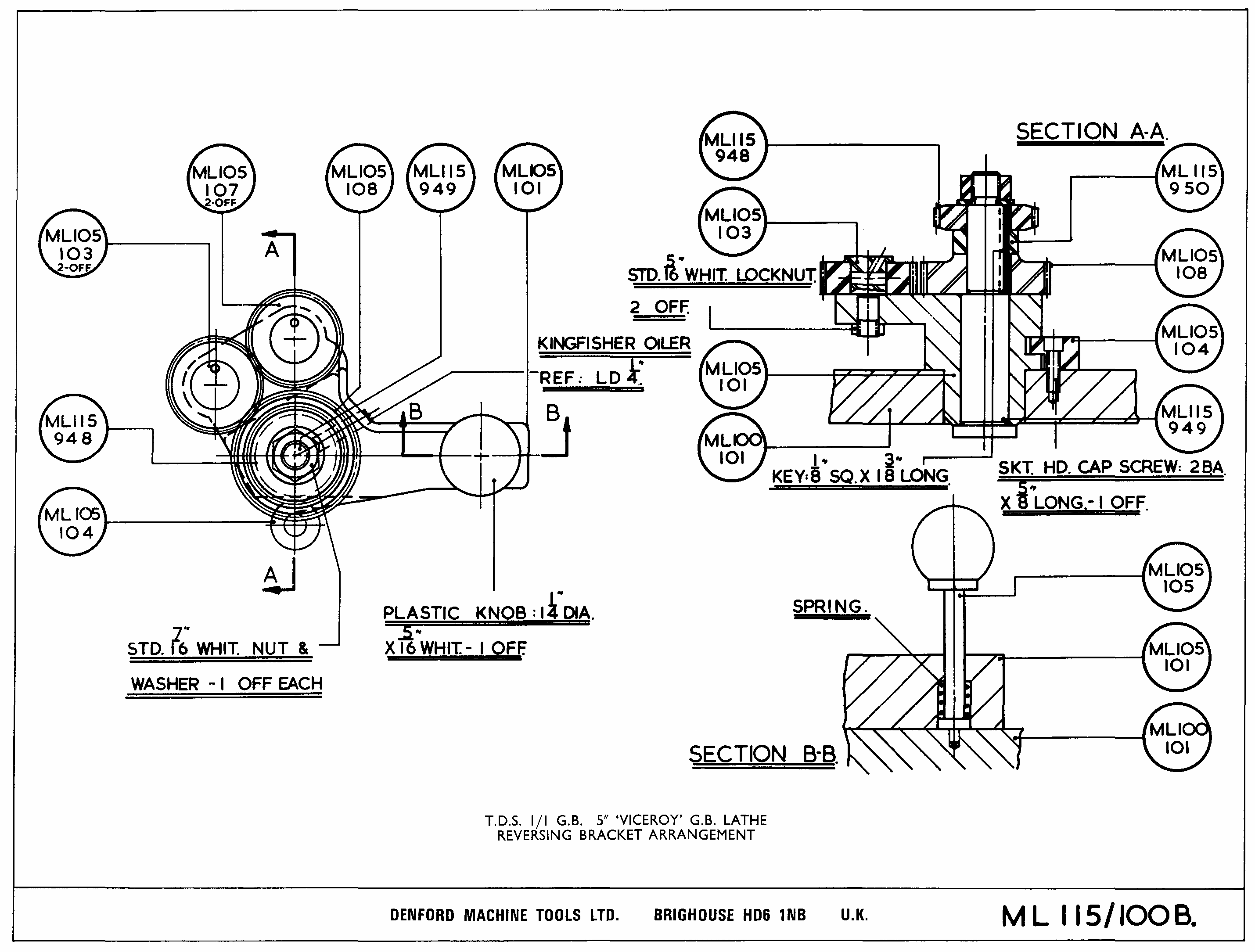

ML 115/100B

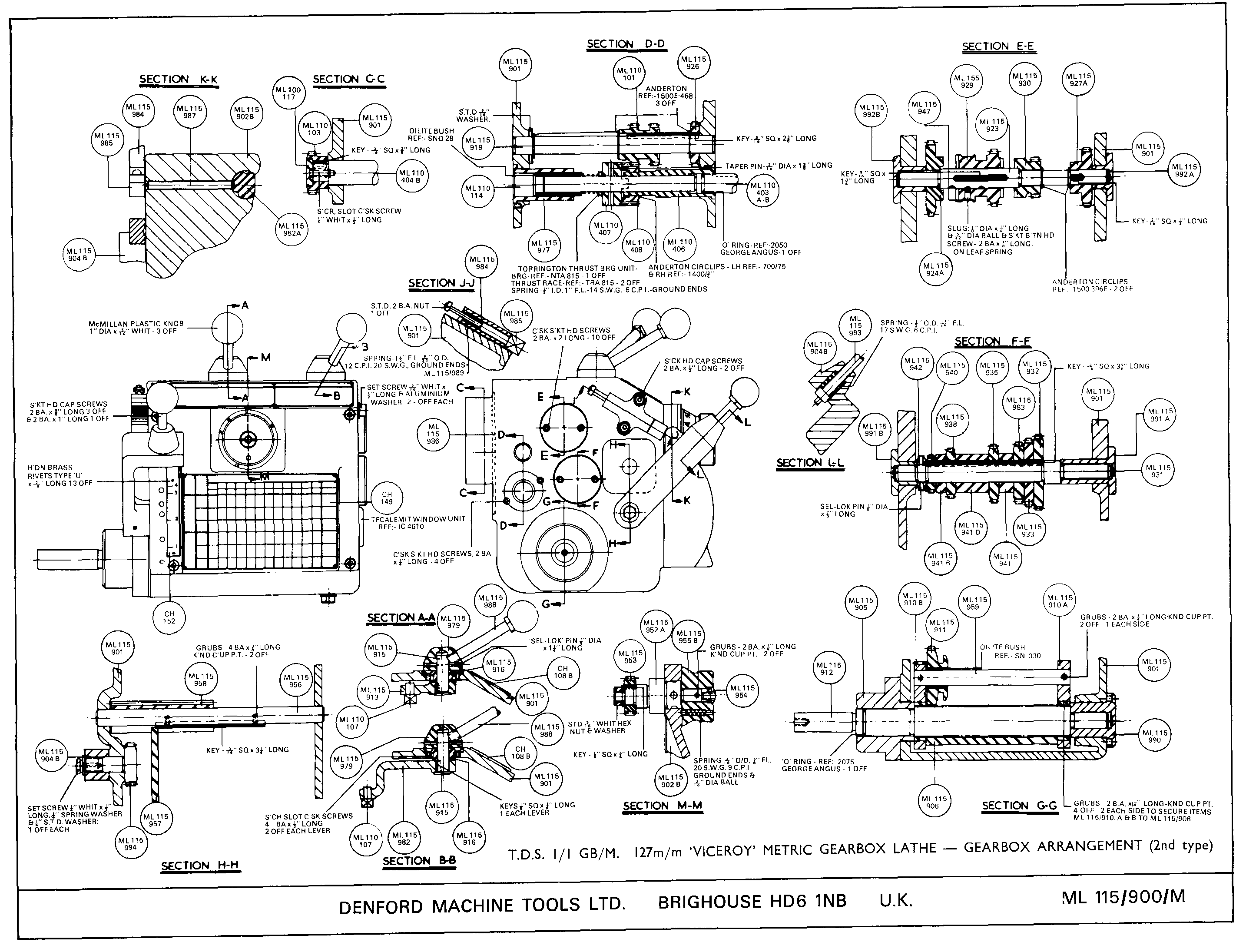

ML 115/900/M
Viceroy Drawings scans ML100/xxx
Moderators: Martin, Steve, Mr Magoo
-
- CNC Expert
- Posts: 119
- Joined: Wed 11 Aug , 2010 14:17 pm
- Hardware/Software: An old Viceroy with a half installed invertor drive,(when I can decide where to put the control pushbuttons I will wire it up properly)
A WMD25V mini mill.
Tractor, Bobcat 320, and Dumper truck.
7 sheds, about 5 (?) mowers. etc, etc. - Location: Scotland !
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Viceroy Drawings scans.
Thanks Les - i'll make this stick to the top of the forum and put the drawing numbers in so they can be searched
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Viceroy Drawings scans ML100/xxx
Here's another couple of gearbox drawings:
- Attachments
-
- ML115_903.pdf
- (55.74 KiB) Downloaded 1223 times
-
- ML115_900B.pdf
- (76.25 KiB) Downloaded 1291 times
-
- ML115_900A.pdf
- (54.88 KiB) Downloaded 1257 times
-
- ML115-900.jpg (619.62 KiB) Viewed 16104 times
