Project of the Week: Match Stick Box

JAllsop · Fri 10 Jan , 2020 15:14 pm

Create a Match Stick Box

This Project requires an Aluminium Round Bar Billet measuring at least 50 mm x 25 mm, QuickTurn 2D and VRTurning software, a Lathe and a 18 x 1.5mm hand tap.

Made on TURN 270 Pro

For more details contact Sales@denford.co.uk

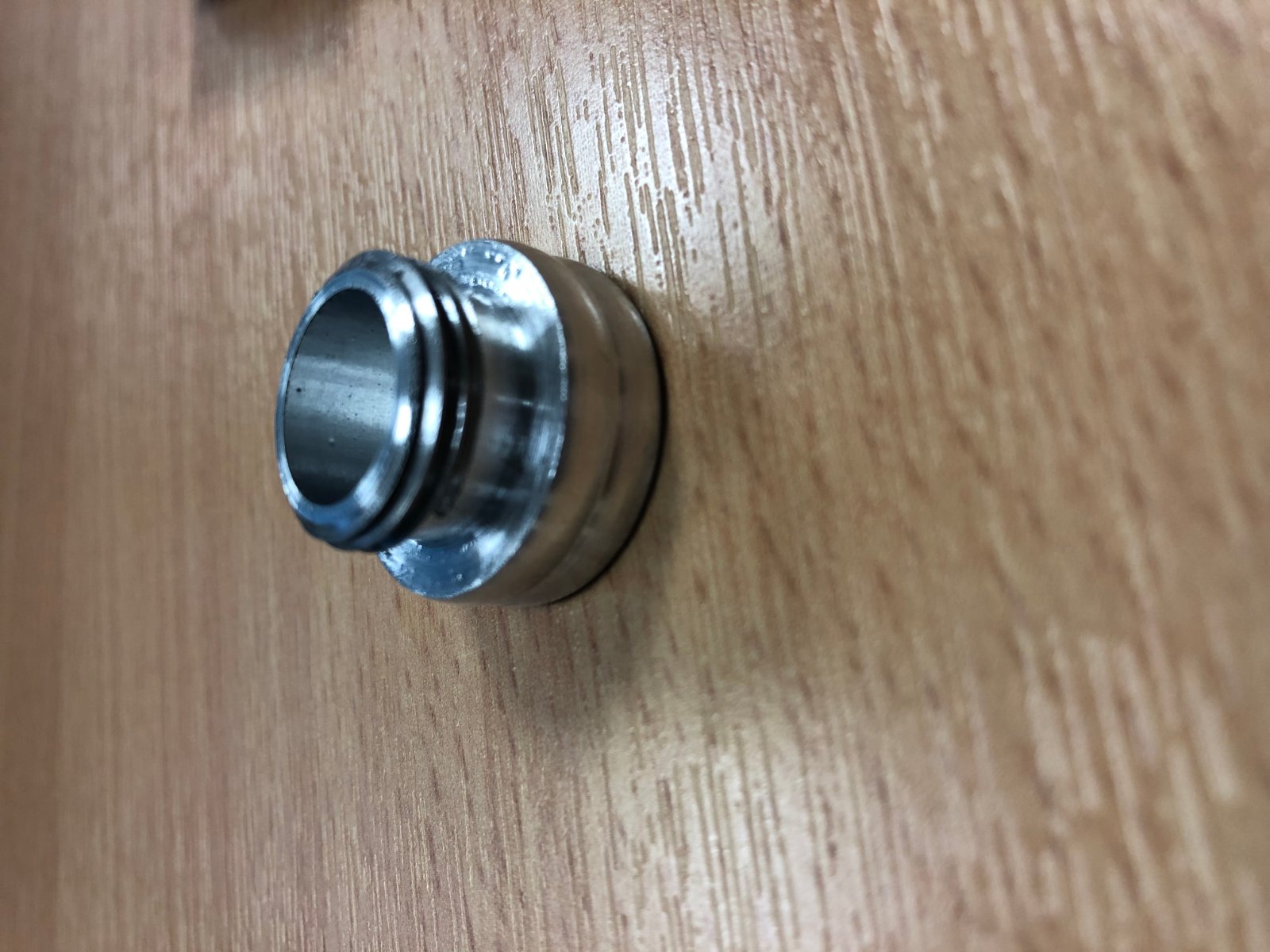

: IMG-7434.JPG (257.35 KiB) Viewed 18753 times

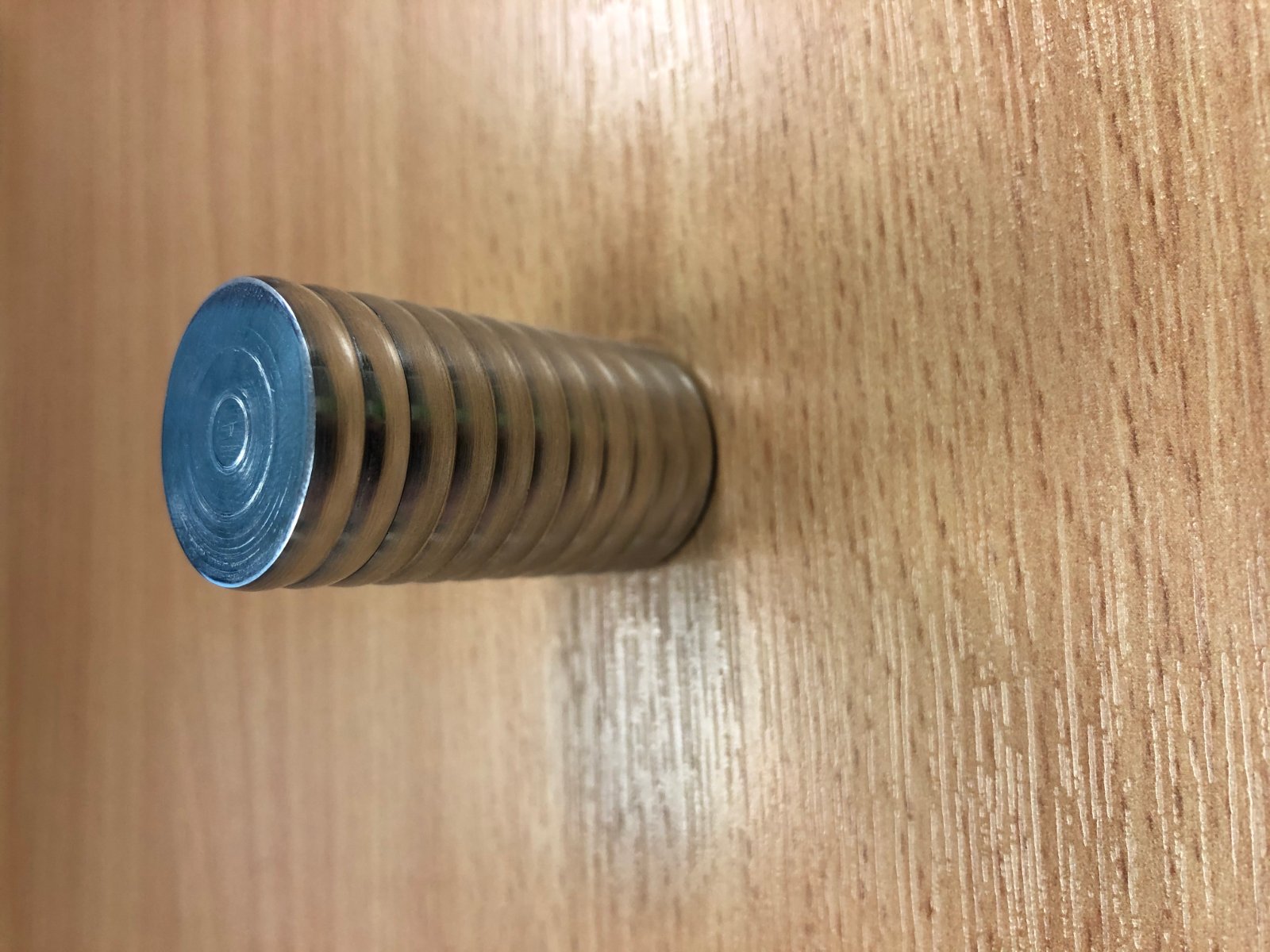

: IMG-7433.JPG (254.5 KiB) Viewed 18753 times

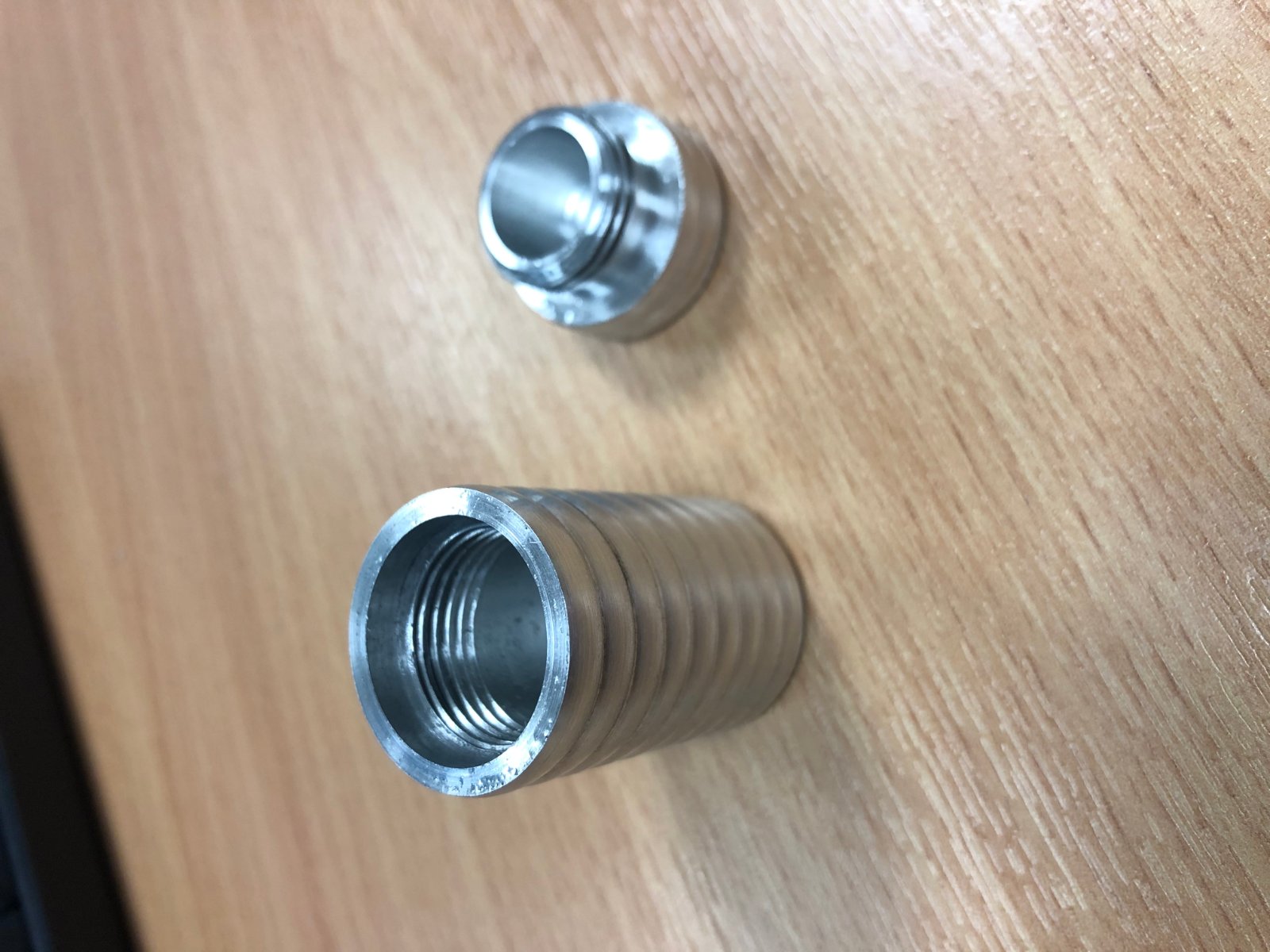

: IMG-7432.JPG (229.63 KiB) Viewed 18753 times

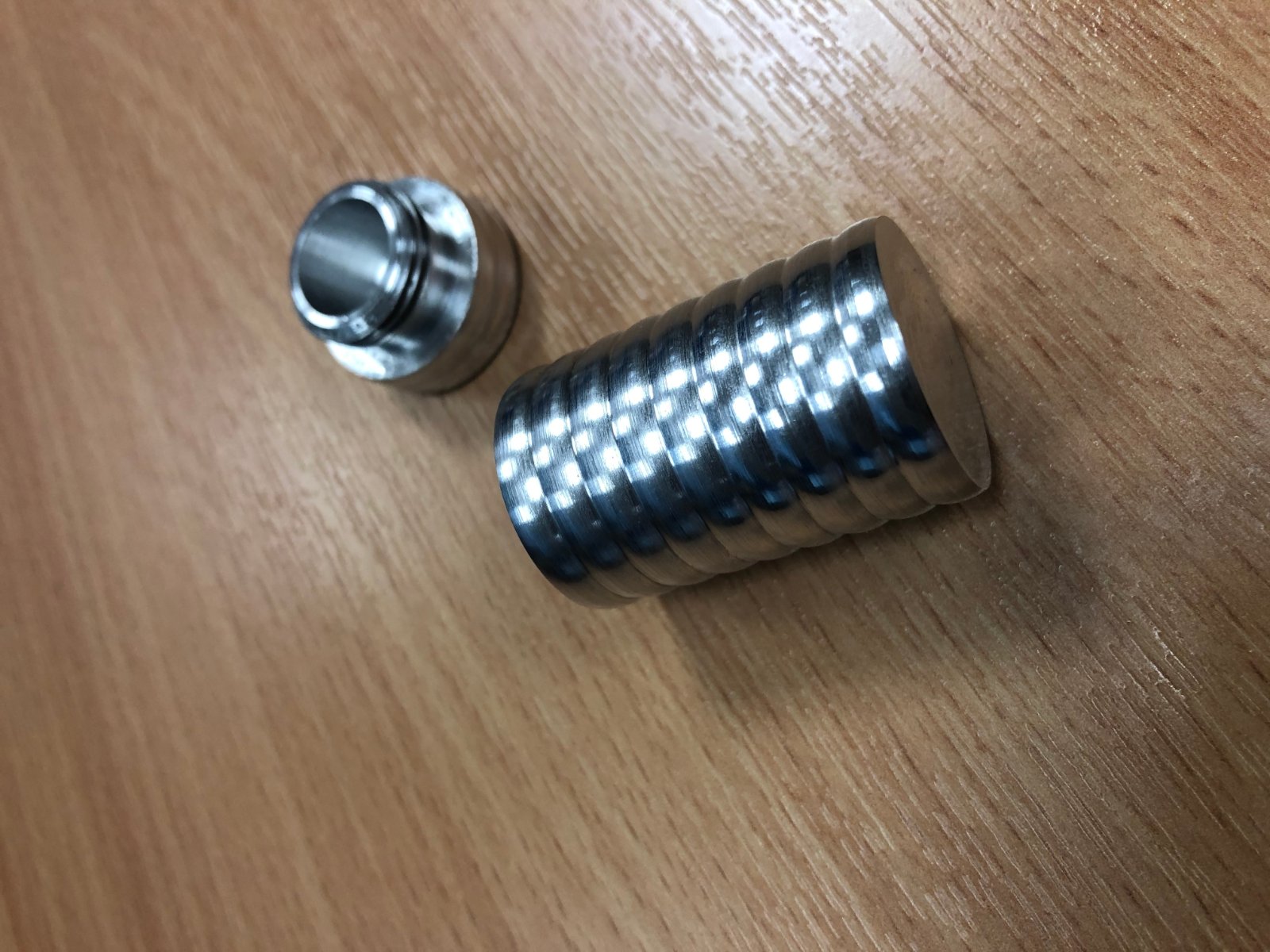

: IMG-7431.JPG (262.18 KiB) Viewed 18753 times

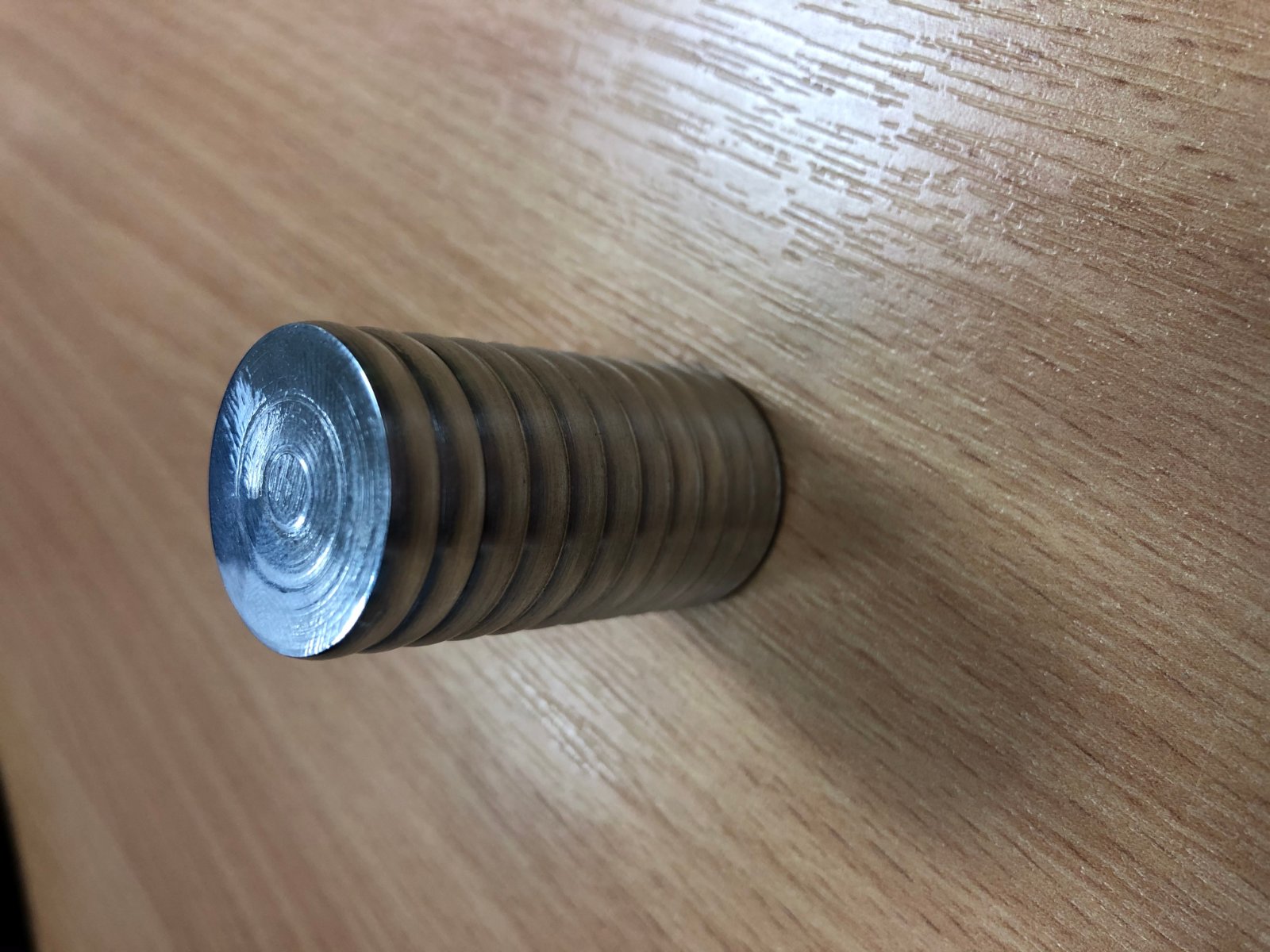

: IMG-7430.JPG (211.61 KiB) Viewed 18753 times

The QuickTurn 2D Files can be Downloaded here:

Match lid.zip: (2.37 KiB) Downloaded 857 times

Match Pot.zip: (2.4 KiB) Downloaded 867 times

The FNL Files for VRTurning can be Downloaded here:

Match Pot.fnl: (3.78 KiB) Downloaded 931 times

Match lid.fnl: (5.16 KiB) Downloaded 884 times

TOP TIP:

Check your tooling and offsets before producing the parts. Make sure the tools are set up correctly. For our FNL files we have used the Denford tooling package to suit the 8 Station Turret.
