Retrofitting CNC Mill and Lathe
As a student final year project my team was given the task to develop a control system using Programmable Logic Controllers (PLC) and stepper controllers and to configure a suitable software which will execute various manufacturing tasks that will facilitate the integration of a Computer Numerical Control (CNC) mill and a lathe and a robotic arm.
Upon inspection the CNC mill and lathe are older Denford machines (Novamill) obtained back in 2000 with the actual control system missing. There is no visible documentation, the computer is out of operation therefore we cannot even determine the software used.
Any help you guys can provide to us beginning this project will be appreciated.
Best Regards,
C
Upon inspection the CNC mill and lathe are older Denford machines (Novamill) obtained back in 2000 with the actual control system missing. There is no visible documentation, the computer is out of operation therefore we cannot even determine the software used.
Any help you guys can provide to us beginning this project will be appreciated.
Best Regards,
C
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Retrofitting CNC Mill and Lathe
Hi,
Photos of the machine and electronic cabinets will help!
Photos of the machine and electronic cabinets will help!
Re: Retrofitting CNC Mill and Lathe
I rather fancy the intention is for you to figure out a new system rather than restore the old one so there's little use having the old stuff. I know nothing of PLC but I'm just learning about CNC retrofitting. I can give you a couple of pointers to sites for control software.Chantelle wrote:As a student final year project my team was given the task to develop a control system using Programmable Logic Controllers (PLC) and stepper controllers and to configure a suitable software which will execute various manufacturing tasks that will facilitate the integration of a Computer Numerical Control (CNC) mill and a lathe and a robotic arm.
Upon inspection the CNC mill and lathe are older Denford machines (Novamill) obtained back in 2000 with the actual control system missing. There is no visible documentation, the computer is out of operation therefore we cannot even determine the software used.
Any help you guys can provide to us beginning this project will be appreciated.
Best Regards,
C
Probably the most popular control system for DIY retrofitting is the Windows-based Mach 3 software by Artsoft. There is a thriving community so support is virtually unlimited. The software is not free but you can download it and configure it to a fully working system with only some limitations on job size until it's paid for.
https://www.machsupport.com/
Another option for control software is LinuxCNC, which is free software, and also has excellent (probably better) support. It's also apparently more capable than Mach but it only runs on Linux.
https://www.linuxcnc.org/
LinuxCNC also contains PLC ladder-logic programming which Mach3 does not AFAIK.
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Retrofitting CNC Mill and Lathe
I believe you can create I/O macros/programs in Mach...I'm sure someone has done one for the Novaturn/Orac automatic toolpost on here before.LinuxCNC also contains PLC ladder-logic programming which Mach3 does not AFAIK.
Re: Retrofitting CNC Mill and Lathe
Pete. wrote:I rather fancy the intention is for you to figure out a new system rather than restore the old one so there's little use having the old stuff. I know nothing of PLC but I'm just learning about CNC retrofitting. I can give you a couple of pointers to sites for control software.Chantelle wrote:As a student final year project my team was given the task to develop a control system using Programmable Logic Controllers (PLC) and stepper controllers and to configure a suitable software which will execute various manufacturing tasks that will facilitate the integration of a Computer Numerical Control (CNC) mill and a lathe and a robotic arm.
Upon inspection the CNC mill and lathe are older Denford machines (Novamill) obtained back in 2000 with the actual control system missing. There is no visible documentation, the computer is out of operation therefore we cannot even determine the software used.
Any help you guys can provide to us beginning this project will be appreciated.
Best Regards,
C
Probably the most popular control system for DIY retrofitting is the Windows-based Mach 3 software by Artsoft. There is a thriving community so support is virtually unlimited. The software is not free but you can download it and configure it to a fully working system with only some limitations on job size until it's paid for.
https://www.machsupport.com/
Another option for control software is LinuxCNC, which is free software, and also has excellent (probably better) support. It's also apparently more capable than Mach but it only runs on Linux.
https://www.linuxcnc.org/
LinuxCNC also contains PLC ladder-logic programming which Mach3 does not AFAIK.
Chantelle
The intention is to create a new system. I will just be learning about PLCs and CNC retrofitting as well.
Thanks for the hints with the control software but I think we will be using the Mach 3 because of its ability to generate functions from the CAD drawings. Its not definite as yet so I will continue to look at the LinuxCNC because of the ladder logic.
Re: Retrofitting CNC Mill and Lathe
Here are some photos of the machines as requested.
- Attachments
-

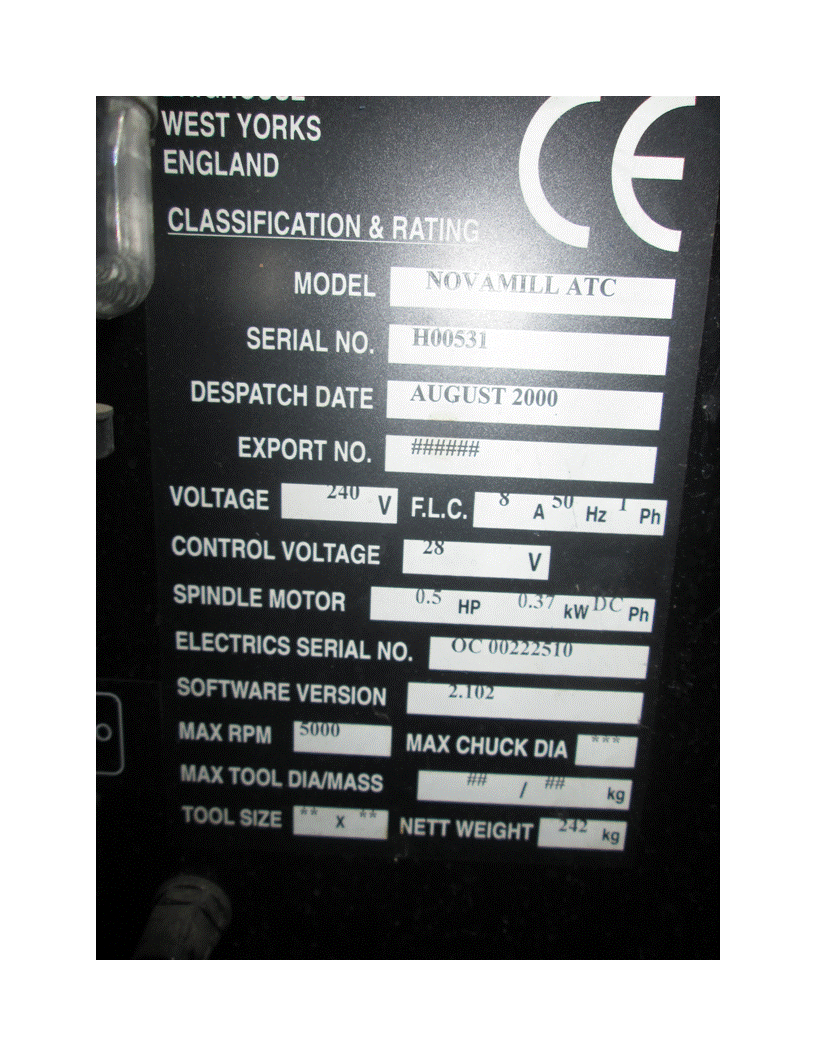

- Lathe - Nameplate
- Lathe - Nameplate.gif (283.72 KiB) Viewed 15777 times
-

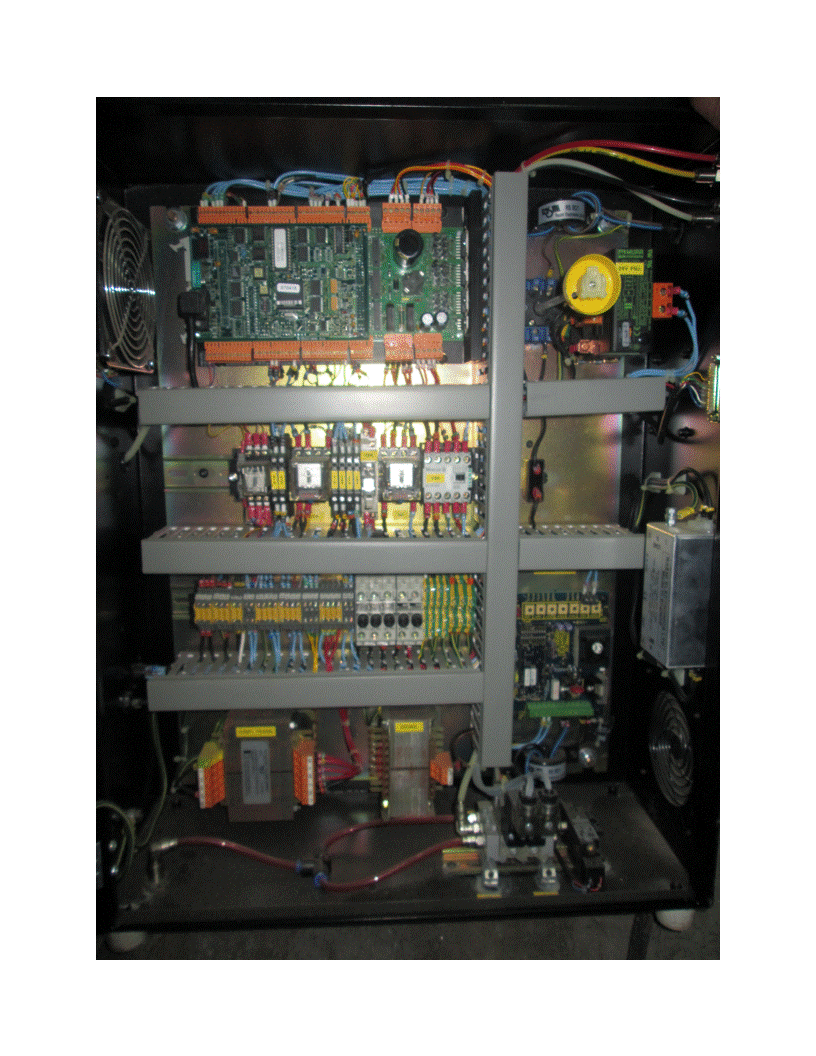

- Lathe - control box
- Lathe - control box.gif (338.49 KiB) Viewed 15777 times
-

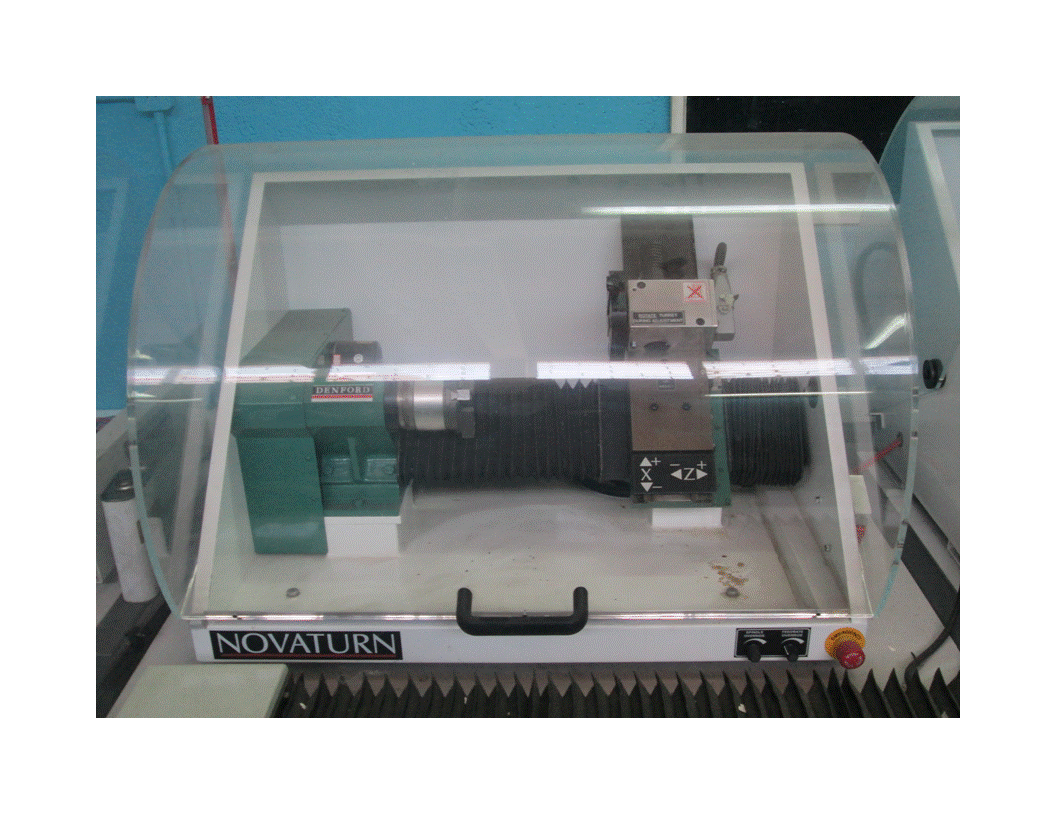

- Lathe
- Lathe.gif (292.96 KiB) Viewed 15777 times
-

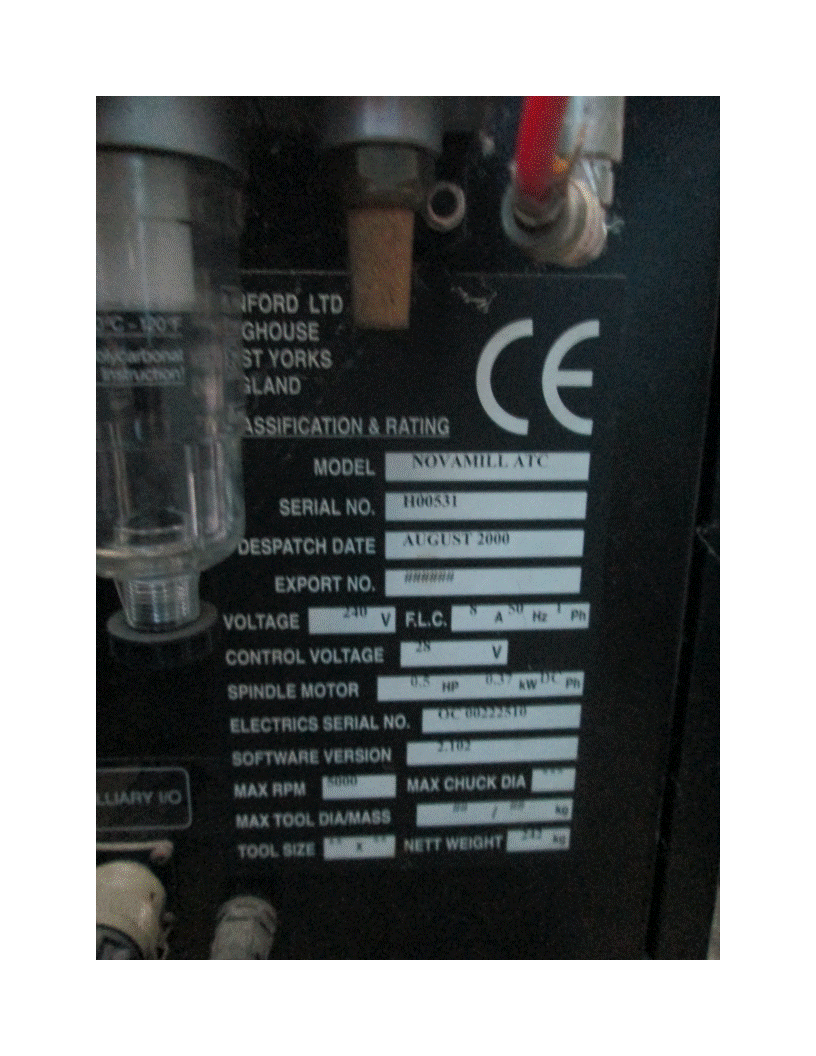

- CNC Mill - Nameplate
- CNCmill - nameplate.gif (306.26 KiB) Viewed 15777 times
-

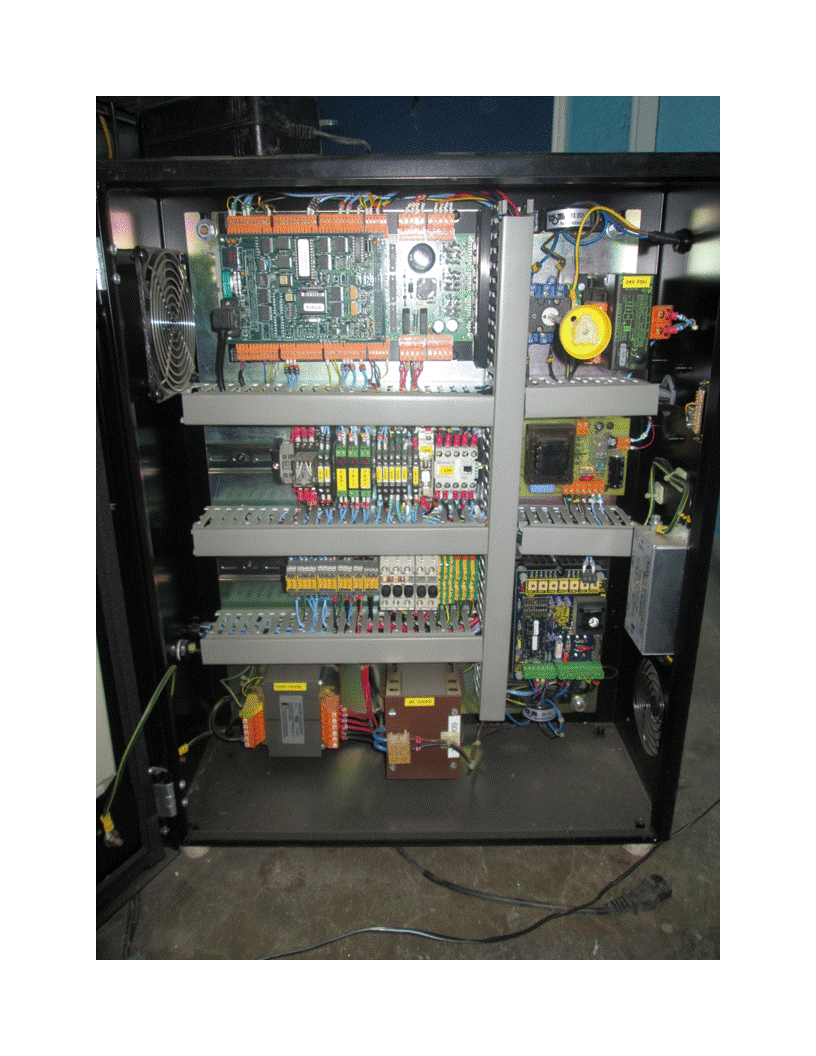

- CNC Mill - Control box
- CNCMill -Control box.gif (328.15 KiB) Viewed 15777 times
-

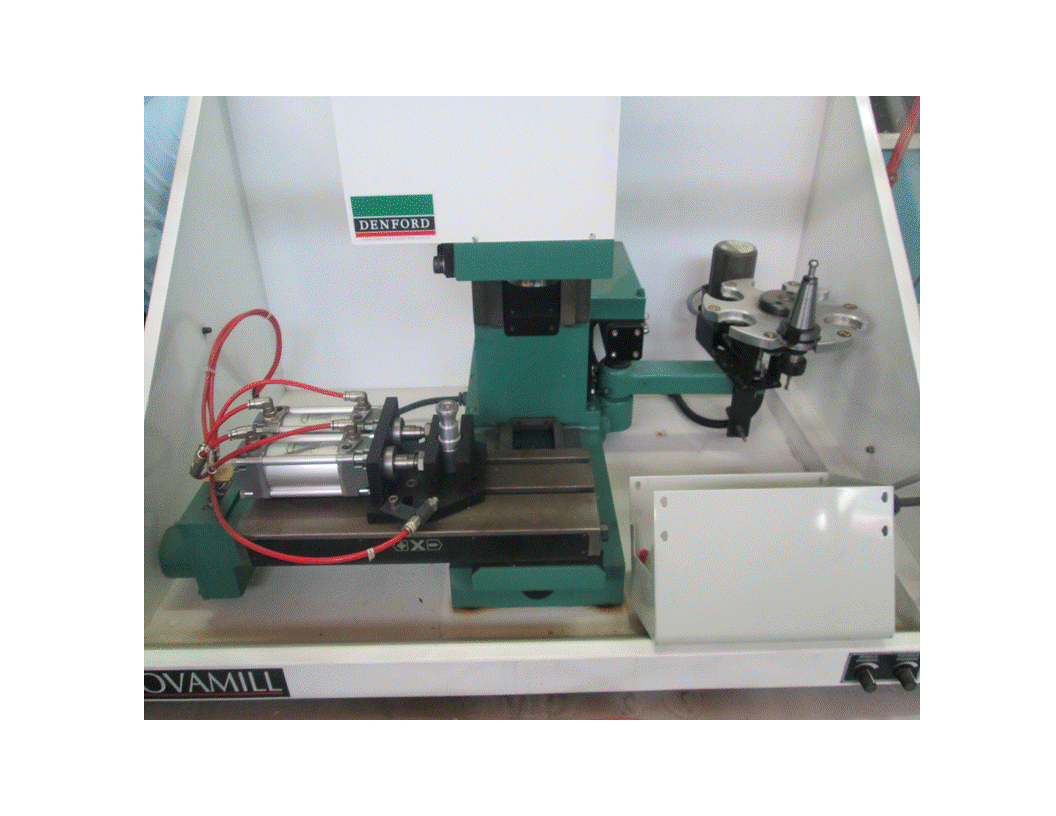

- CNC Mill
- CNC mill-.gif (263.95 KiB) Viewed 15777 times
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Retrofitting CNC Mill and Lathe
You'll should be able to keep all the electronics on both those machines.
Keep the stepper stage and remove the Baldor top board then connect a BOB (breakout board) for Mach to the 96 way connector.
Others have done it:
viewtopic.php?t=2263
Here is the 96way connector info:
viewtopic.php?f=4&t=2264
Keep the stepper stage and remove the Baldor top board then connect a BOB (breakout board) for Mach to the 96 way connector.
Others have done it:
viewtopic.php?t=2263
Here is the 96way connector info:
viewtopic.php?f=4&t=2264
Re: Retrofitting CNC Mill and Lathe
Hi,
If you do remove the blador top boards for either the mill or lathe and have no further use for them I'd potentially be interested in them as spares for my machines.
Cheers
BPM
If you do remove the blador top boards for either the mill or lathe and have no further use for them I'd potentially be interested in them as spares for my machines.
Cheers
BPM
-
- CNC Guru
- Posts: 525
- Joined: Tue 14 Nov , 2006 12:12 pm
- Hardware/Software: .....
4 Quatros
3 Oracs
2 Easiturn atc
12 station lathe atc
Mach 3 - Location: Quatroland
Re: Retrofitting CNC Mill and Lathe
I have loads of top boards from starmills and novamills, give me a ring on 07791011037 if you want any.bpmsl wrote:Hi,
If you do remove the blador top boards for either the mill or lathe and have no further use for them I'd potentially be interested in them as spares for my machines.
Cheers
BPM
Tom.
Re: Retrofitting CNC Mill and Lathe
Thanks Tom, thats good to know, will do.
Cheers
BPM
Cheers
BPM
Re: Retrofitting CNC Mill and Lathe
I downloaded the VR Mill software and and installed it on my computer in order to test the mill. However, the error message below was displayed:
Mint COM: 1
Mint COM: 2
....
Mint COM: 8
The final message in the photo attached was displayed.
Also, when I checked the control box another error "L" was displayed on the LCD of the motion control board. I am aware that "L" means limit switch open but is that directly related to the mill or the additional devices (Novaturn and robotic arm) which came with the mill.
Can you assist me with these errors and let me know if the VR Mill software version 2.14.3.711 was suitable for this Novamill 2000?
Also suggest any other testing methods that could assist us in determining whether or not the machine components are functional.
Regards,
C
Mint COM: 1
Mint COM: 2
....
Mint COM: 8
The final message in the photo attached was displayed.
Also, when I checked the control box another error "L" was displayed on the LCD of the motion control board. I am aware that "L" means limit switch open but is that directly related to the mill or the additional devices (Novaturn and robotic arm) which came with the mill.
Can you assist me with these errors and let me know if the VR Mill software version 2.14.3.711 was suitable for this Novamill 2000?
Also suggest any other testing methods that could assist us in determining whether or not the machine components are functional.
Regards,
C
- Attachments
-

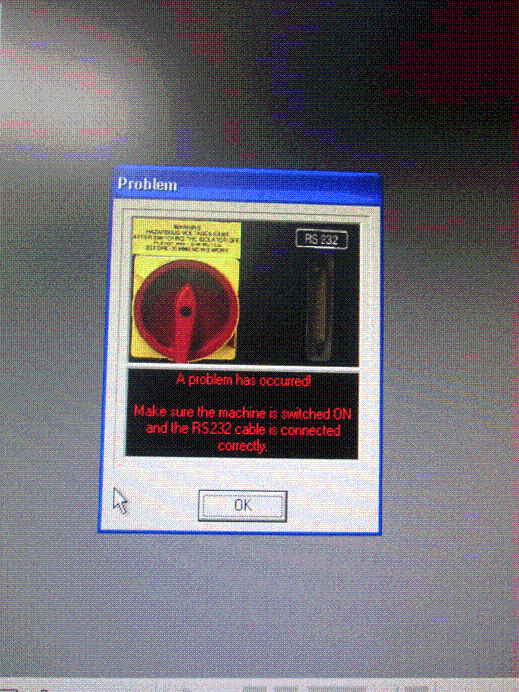

- This error was recurring
- Error msg1.gif (135.06 KiB) Viewed 15679 times
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Retrofitting CNC Mill and Lathe
Make sure that Novamill is selected in the VR Milling software (Setup > Machine parameters > denny) right click the machine name and choose Activate
also check the rs232 cable(s) you're connecting to the machine with, match the cable here:
viewtopic.php?t=544
also check the rs232 cable(s) you're connecting to the machine with, match the cable here:
viewtopic.php?t=544
Re: Retrofitting CNC Mill and Lathe
It looks as though you have a Dos eprom fitted on the Denstep card which will not connect to any VR software.
The photo is not very clear so I may be wrong but the serial plate is saying Dos also.
The photo is not very clear so I may be wrong but the serial plate is saying Dos also.
Re: Retrofitting CNC Mill and Lathe
Thanks for the help so far.
I cannot find the software version 2.102 (on the control box) to download, which other version is best suited besides the VR milling V5?
Regards
C
I cannot find the software version 2.102 (on the control box) to download, which other version is best suited besides the VR milling V5?
Regards
C
- Denford Admin
- Site Admin
- Posts: 3642
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Retrofitting CNC Mill and Lathe
you can find FanucMD here which should work.
https://website.denford.ltd.uk/support/9 ... s-software
Your original .go and .opt file settings for the Novamill are attached:
https://website.denford.ltd.uk/support/9 ... s-software
Your original .go and .opt file settings for the Novamill are attached:
- Attachments
-
- H00531.pdf
- (24.97 KiB) Downloaded 1109 times
