Search found 28 matches

by Artysmarty
Tue 18 Feb , 2020 20:54 pm
Forum: Viceroy
Topic: Rear tool post
Replies: 0
Views: 3464

Rear tool post

Hi all I was thinking of making a rear tool post for my viceroy gb I have seen on other posts that they used to do a cross slide with 2 tee slots milled in as an extra. However there are drawings available on the forum to Mill your own. My problem is the cross slide as a cast aluminium cover which p...
by Artysmarty
Sun 15 Dec , 2019 22:14 pm
Forum: Viceroy
Topic: METRIC Viceroy TDS 1/1 GBL screwcutting
Replies: 2
Views: 1896

Re: METRIC Viceroy TDS 1/1 GBL screwcutting

Very handy document.
Just what I have been looking for
by Artysmarty
Fri 13 Dec , 2019 18:45 pm
Forum: Viceroy
Topic: Viceroy gearbox
Replies: 0
Views: 3641

Viceroy gearbox

Hi All Through a process of trial and error I proved my logic correct. The 16t gear is position 5 on the gear selector lever. To do this I had to remove the gear train to see what the 32T wheel meshed with. It does in fact mesh solely with a wheel on the back shaft that has the sliding wheels for th...
by Artysmarty
Tue 10 Dec , 2019 19:20 pm
Forum: Viceroy
Topic: Viceroy gear box
Replies: 0
Views: 3546

Viceroy gear box

Hi all Finally took the plunge and removed my gearbox front cover. The route cause of my problem was immediately visible and was the right hand tumbler carrier part no ML115/910A was shattered in 3 different parts and the tumbler shaft was lying on the bottom of the gearbox. I have finally managed t...
by Artysmarty
Tue 10 Dec , 2019 0:09 am
Forum: Viceroy
Topic: Drawing ML115/900
Replies: 4
Views: 1390

Re: Drawing ML115/900

Hi all Finally took the plunge and removed my gearbox front cover. The route cause of my problem was immediately visible and was the right hand tumbler carrier part no ML115/910A was shattered in 3 different parts and the tumbler shaft was lying on the bottom of the gearbox. I have finally managed t...
by Artysmarty
Fri 18 Oct , 2019 17:19 pm
Forum: Viceroy
Topic: Drawing ML115/900
Replies: 4
Views: 1390

Re: Drawing ML115/900

Hi thanks for the info. Mine is definitely a metric box. Another thought has just struck me, on the feed and speed instructions from the Denford manual. They go through it step by step and they emphasise that the lathe must be running before you engage left right or middle also for lead screw or fee...
by Artysmarty
Fri 18 Oct , 2019 0:25 am
Forum: Viceroy
Topic: Drawing ML115/900
Replies: 4
Views: 1390

Drawing ML115/900

Hi All Drawing No ML115/900m shows on section KK a part numbered ml115 985 which in the parts list is described as "foolproof pin housing" it also shows a part ML115 987 described as "foolprof pin" This pin goes into the gear box and butts up to ml 115 952a described as "selector Shaft" My Question ...
by Artysmarty
Wed 16 Oct , 2019 21:43 pm
Forum: Viceroy
Topic: Selector Dial stuck
Replies: 10
Views: 1882

Re: Selector Dial stuck

Gear 4.jpg
Hi Richard. I think I have followed your instructions re Shear pin. This is what I found. Notice the splines on solid shaft, could they have slipped out of orientation
Gear 4.jpg (275.38 KiB) Viewed 1848 times
by Artysmarty
Wed 16 Oct , 2019 16:11 pm
Forum: Viceroy
Topic: Selector Dial stuck
Replies: 10
Views: 1882

Re: Selector Dial stuck

Hi Richard. Will check the shear pin but all the gear train is moving as should, the input shaft to the gearbox is rotating and the end of the shaft which is flush with the side of the gearbox is rotating (as expected) I am meeting the vendor tomorrow and will be raising this with him. Thanks once a...
by Artysmarty
Wed 16 Oct , 2019 13:27 pm
Forum: Viceroy
Topic: Front gearbox plate
Replies: 0
Views: 4042

Front gearbox plate

Hi There is a thread on here labelled feed as speed plate. One of the writers is a person called Pete cnc expert. He shows a picture of the front gearbox cover which has been removed and he cautions the other party to leave the gear selector lever in situ. Is Pete still on the forum I would like to ...
by Artysmarty
Wed 16 Oct , 2019 13:18 pm
Forum: Viceroy
Topic: TDS 1/1 Feeds and speeds plate
Replies: 8
Views: 3471

Re: TDS 1/1 Feeds and speeds plate

Hi
Long shot here but can you remove that front gearbox cover without removing the gear selector lever.
by Artysmarty
Wed 16 Oct , 2019 12:54 pm
Forum: Viceroy
Topic: Selector Dial stuck
Replies: 10
Views: 1882

Re: Selector Dial stuck

Hi Richard Thanks for your reply. The input shafts to the gearbox is turning via the gear train With selection lever in neutral and lathe running the dial will not turn. It was turning when I first tried it but was struggling to get feeds working, that was before you explained the stud gears. I trie...
by Artysmarty
Tue 15 Oct , 2019 21:40 pm
Forum: Viceroy
Topic: Selector Dial stuck
Replies: 10
Views: 1882

Re: Selector Dial stuck

Hi Thank you all for your info. Just spent the last hour in my workshop trying to free it up. Didnt mention it in my earlier post but neither my lead screw or drive shaft is turning in any settings. Looking through from the back of the head stock I can see something try to move when I wiggle the sel...
by Artysmarty
Tue 15 Oct , 2019 18:40 pm
Forum: Viceroy
Topic: Selector Dial stuck
Replies: 10
Views: 1882

Selector Dial stuck

Hi me again (not so smart Art LOL) After trying to get my head round the different feed setting. following the directions in the denford Manual my selector dial stopped turning and is now stuck I have released the two grub screws and the centre slotted nut but it wont budge. I think something inside the gearbox is jamming. My Q. is how to take off the front plate of the G Box and is this feasible. Any help welcomed
by Artysmarty
Tue 15 Oct , 2019 18:24 pm
Forum: Viceroy
Topic: Feed speed chart
Replies: 8
Views: 1653

Re: Feed speed chart

Thanks for that Andy
by Artysmarty
Tue 15 Oct , 2019 13:16 pm
Forum: Viceroy
Topic: Feed speed chart
Replies: 8
Views: 1653

Re: Feed speed chart

Hi Andy removed the stud gear on my lathe as per marked photo.
No letter on it just the number 24 which from your description makes it the "D" gear.
Does this mean I can only use the combination of feeds that has the D listed on the plate.
Regards Art
by Artysmarty
Mon 14 Oct , 2019 21:34 pm
Forum: Viceroy
Topic: Feed speed chart
Replies: 8
Views: 1653

Re: Feed speed chart

Hi Richard

Thanks for the info.
Will get hold of my vendor and see if he can shed some light on whats happened to the change gears (fingers crossed)
by Artysmarty
Mon 14 Oct , 2019 20:51 pm
Forum: Viceroy
Topic: Feed speed chart
Replies: 8
Views: 1653

Re: Feed speed chart

Hi Les

Not only do I not have the gears but also there doesnt appear to be a stud on which they should be hung.
Were do you position the gears (if you have them)
by Artysmarty
Mon 14 Oct , 2019 19:47 pm
Forum: Viceroy
Topic: Feed speed chart
Replies: 8
Views: 1653

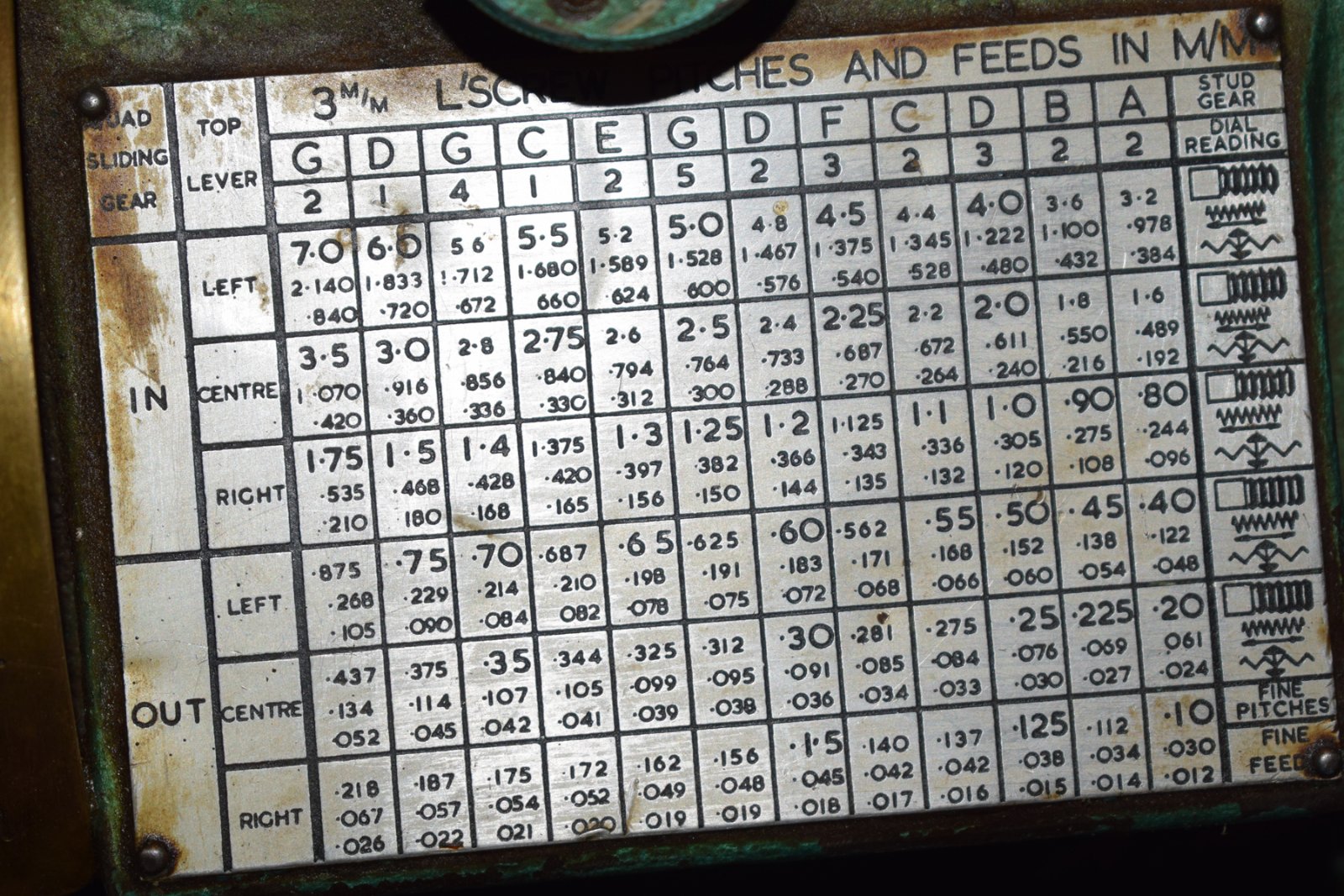

Feed speed chart

Hi could any body throw some light on the top line labelled "stud Gear" when selecting feeds. Are they referring to "change gears". I can find no references anywhere to the ABCDEFG to which it alludes
by Artysmarty
Sat 12 Oct , 2019 20:00 pm
Forum: Viceroy
Topic: Auto feeds
Replies: 3
Views: 1247

Re: Auto feeds

Hi Les
Thanks for your input it's much appreciate.
Art
